Midrange Range
6"/8" High Performance Car Neodymium Speaker
Item No.:
Product Origin: china
Shipping Port: Guangzhou
Color:
Lead Time:
Payment: TT/LC
Product introduction

6"/8" High Performance Car Neodymium Speaker

Pure midbass

Die cast aluminium basket

3 "R" Paper cone with treated cloth surround

Good quality voice coil

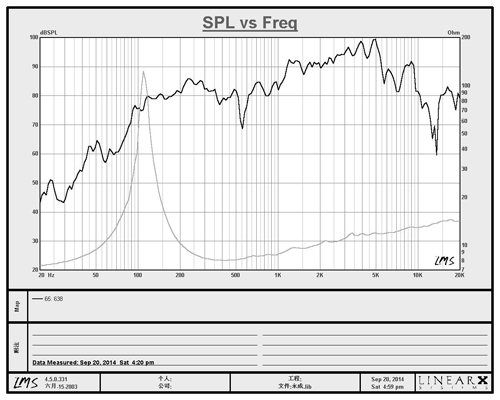

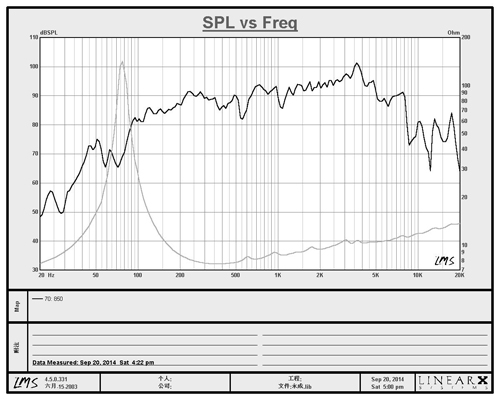

THIELE/SMALL PARAMETER & FREQUENCY RESPONSE CURVE

                        SP6MR400-NDY                                                                     SP6MR500-NDY





Model NO. SP6MR400-NDY SP6MR500-NDY
Nominal diameter      6.5"(173mm) 8"(210mm)
Nominal impedance  8  ohm 8  ohm
Power rating 120W  RMS 150W  RMS
Sensitivity(1w/1m)  94dB ± 3dB  95dB ± 3dB
Frequency range 109~6KHz  77~5KHz
Voice coil diameter ф38.5mm ф49.5mm
Basket Die cast aluminium Die cast aluminium
Cone and dust cap Paper Paper
Surround Treated cloth Treated cloth
Voice coil wire CCAW CCAW
Voice coil bobbin Kapton Kapton
Magnet NdFeB NdFeB
